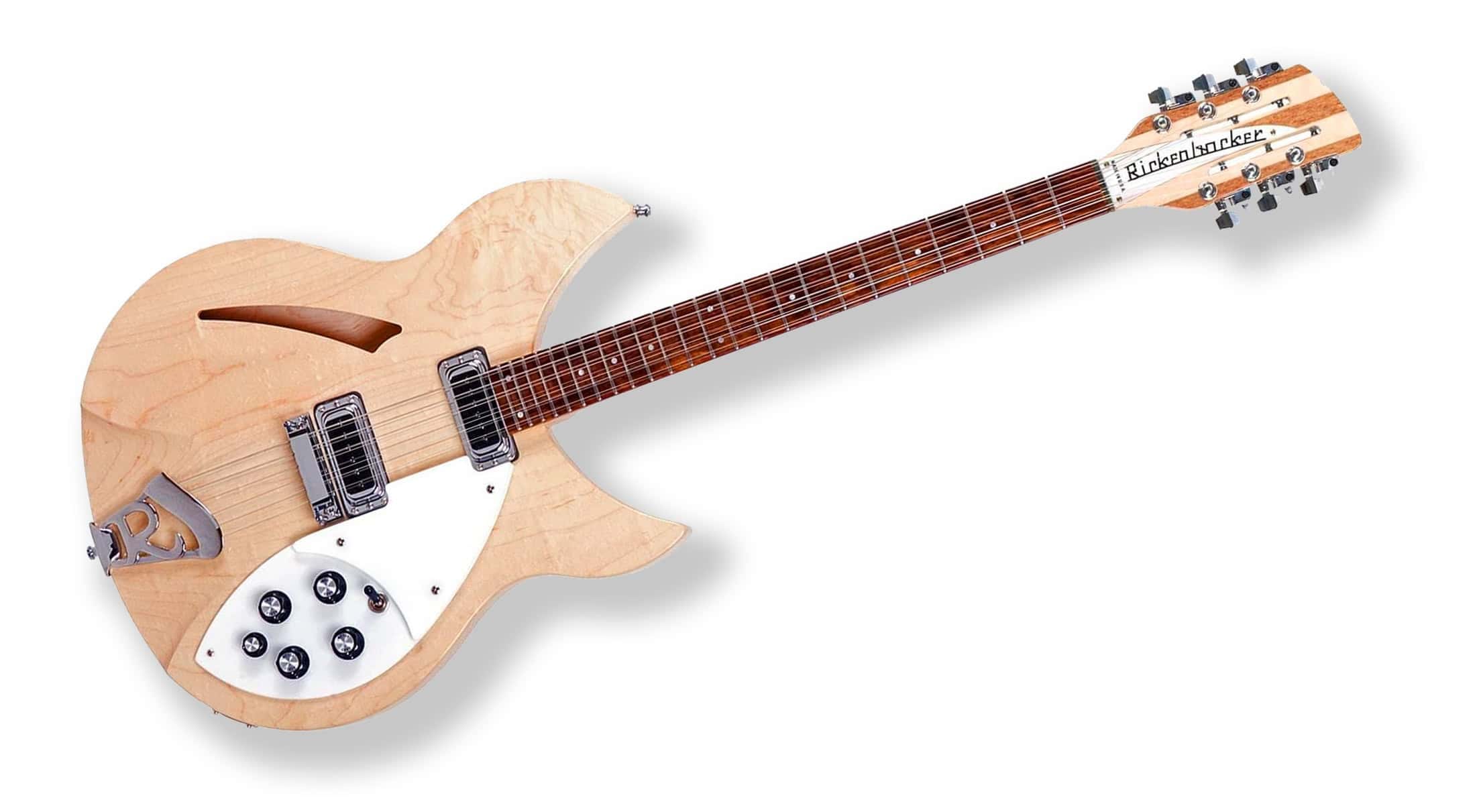

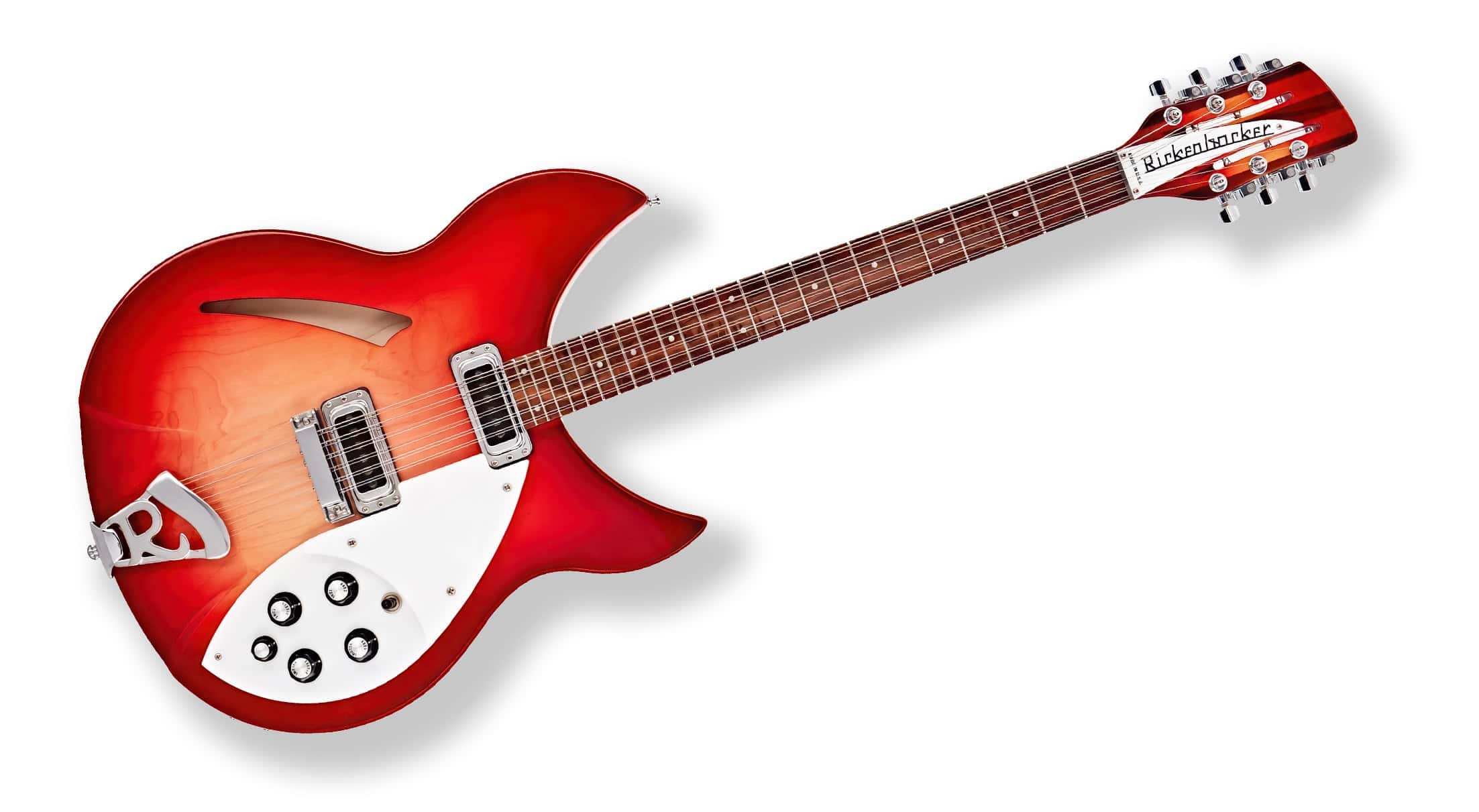

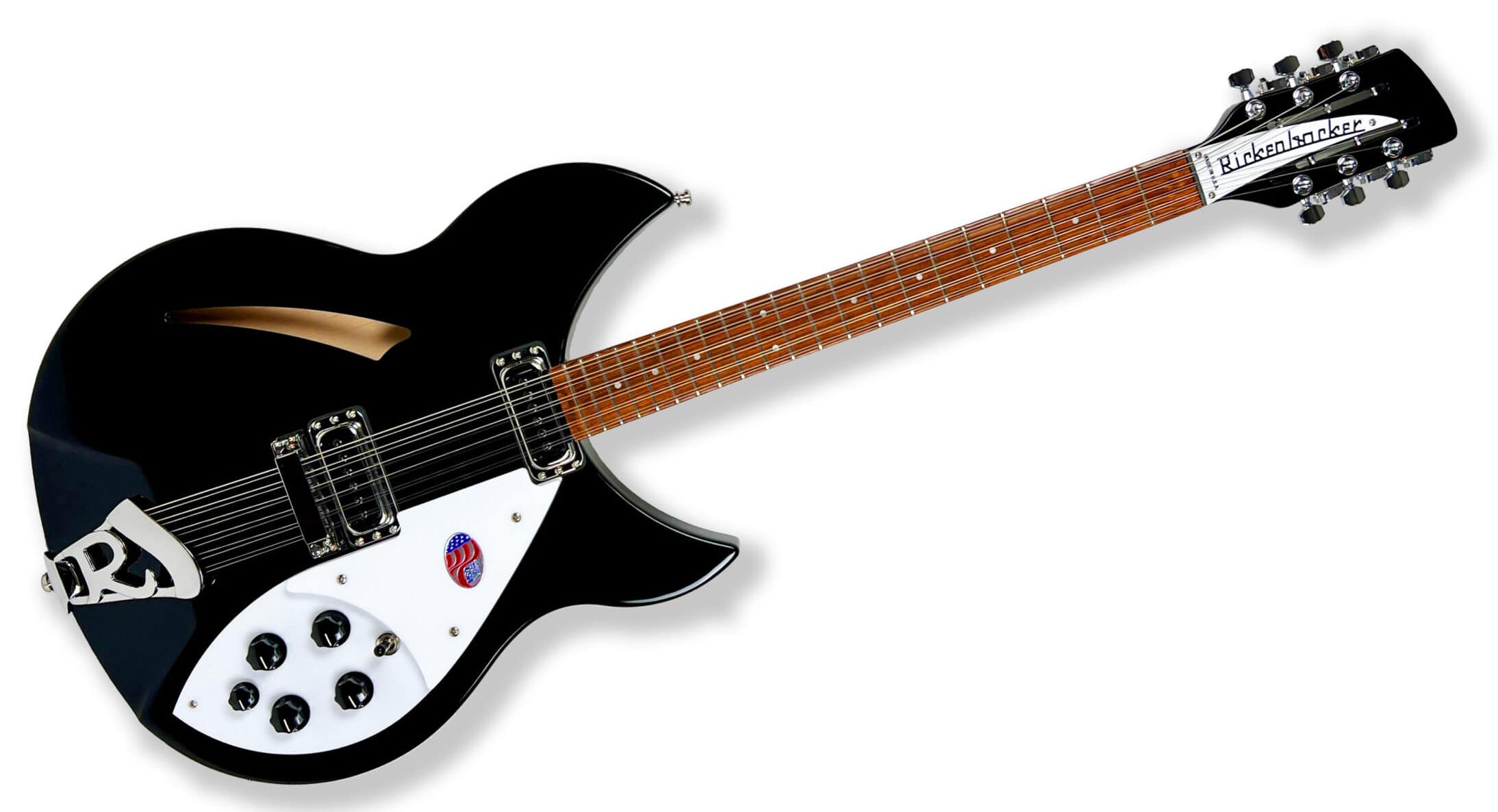

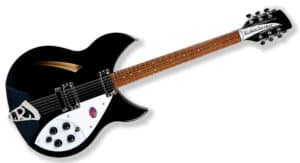

Model 330/12

Basically the same as Model 330 but with twelve strings. Careful acoustic research has resulted in the full, rich and warm sound of this popular model. Two single coil pickups on a full size body are accented by a traditionally shaped sound hole. The 24 fret Rosewood fingerboard is punctuated by dot inlay fret markers, with full double cutaways permitting access to all the frets. Standard output is monaural through a single jack plate.

Specifications

Body TypeSemi-Acoustic
No. Frets21
Scale Length62.9 cm (24 3/4”)
Neck Width at Nut41.4 mm (1.63”)
Neck Width at 12th Fret49.05 mm (1 .931”)
Crown Radius25.4 cm (10”)
Body WoodMaple
Neck WoodMaple & Walnut
Fingerboard WoodRosewood
Weight3.6 kg (8.0 lbs.)
Overall Length100.3 cm (39 1/2”)
Overall Width38.1 cm (15”)
Overall Depth38.1 mm (1 1/2”)
Neck BindingNo
Fret Marker StyleDot
Tailpiece‘R’
Bridge6 Saddle
Neck TypeSet-in
No. of Pickups2
Type of PickupsHi-gain
Output TypeMono
Machine HeadsGotoh
