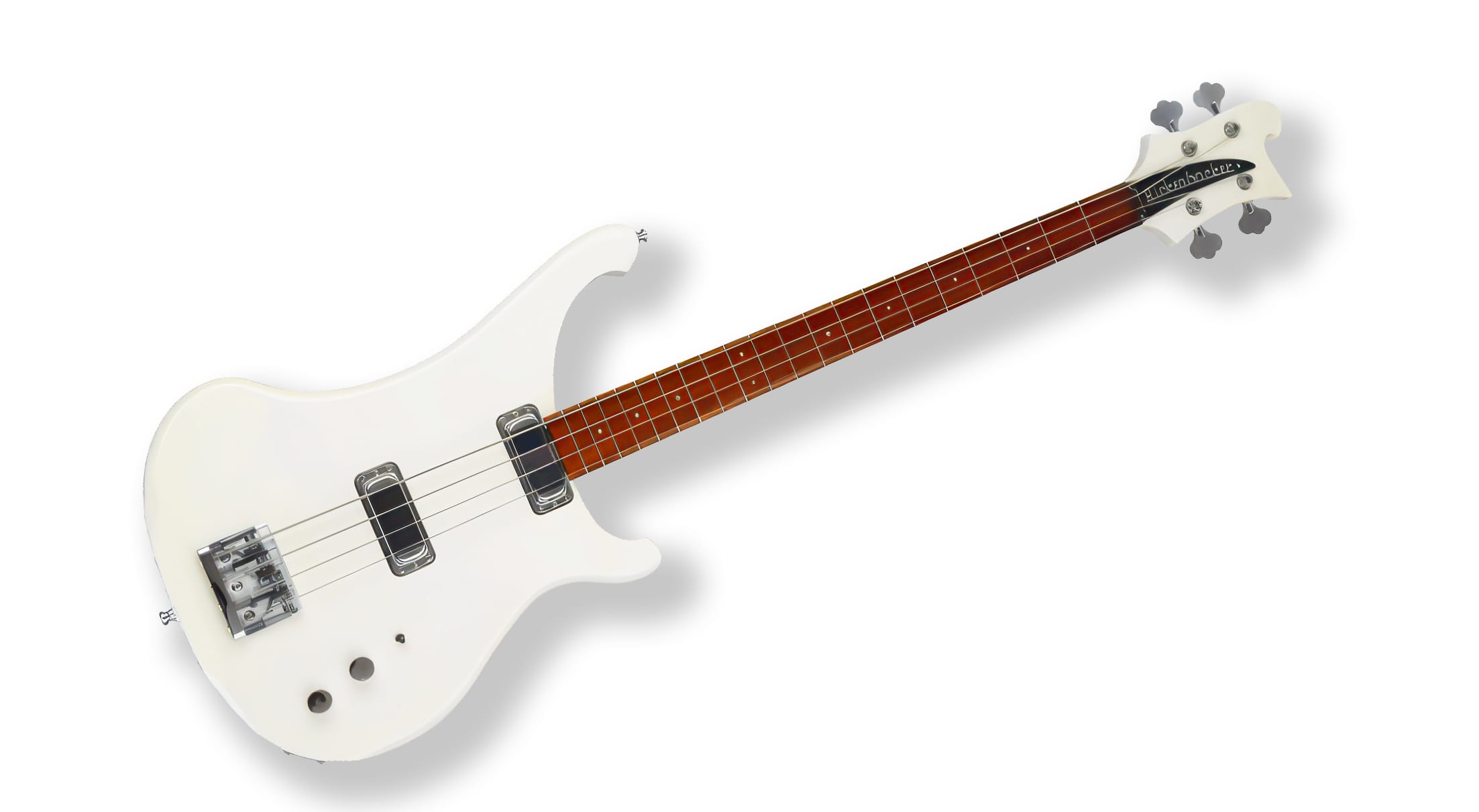

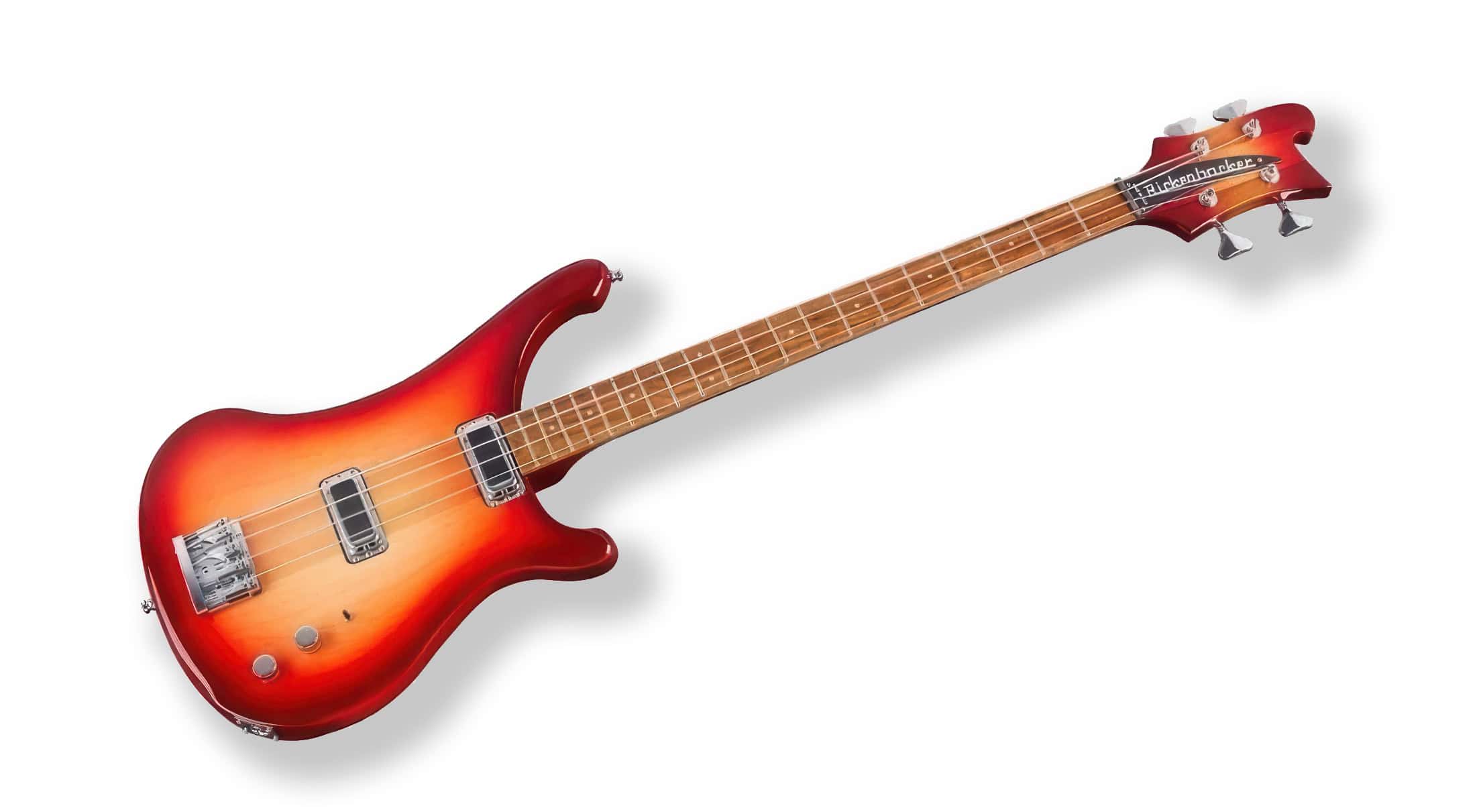

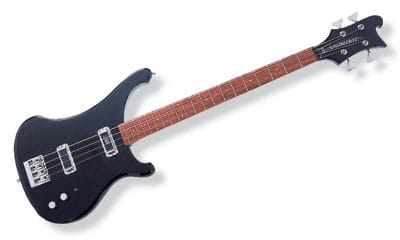

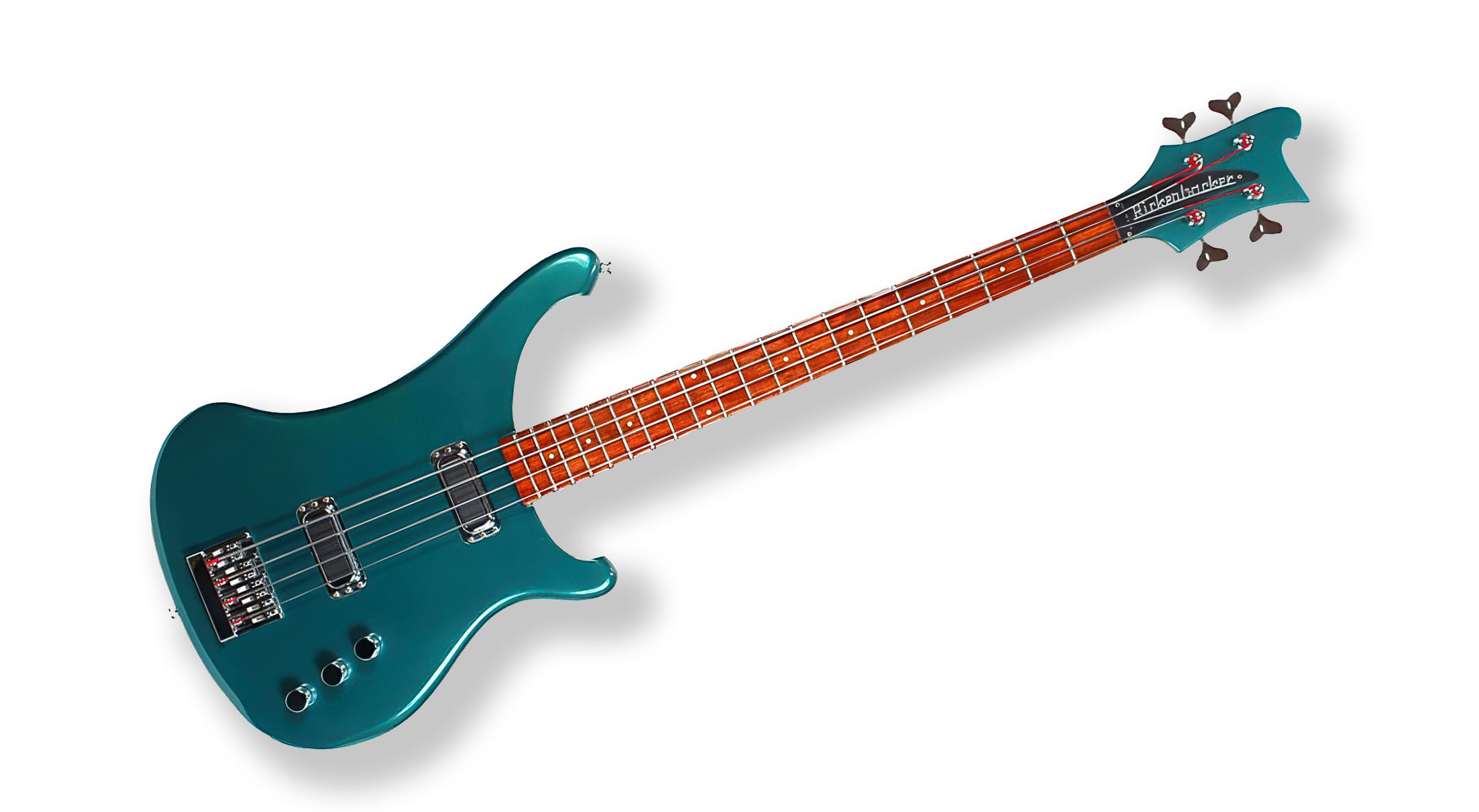

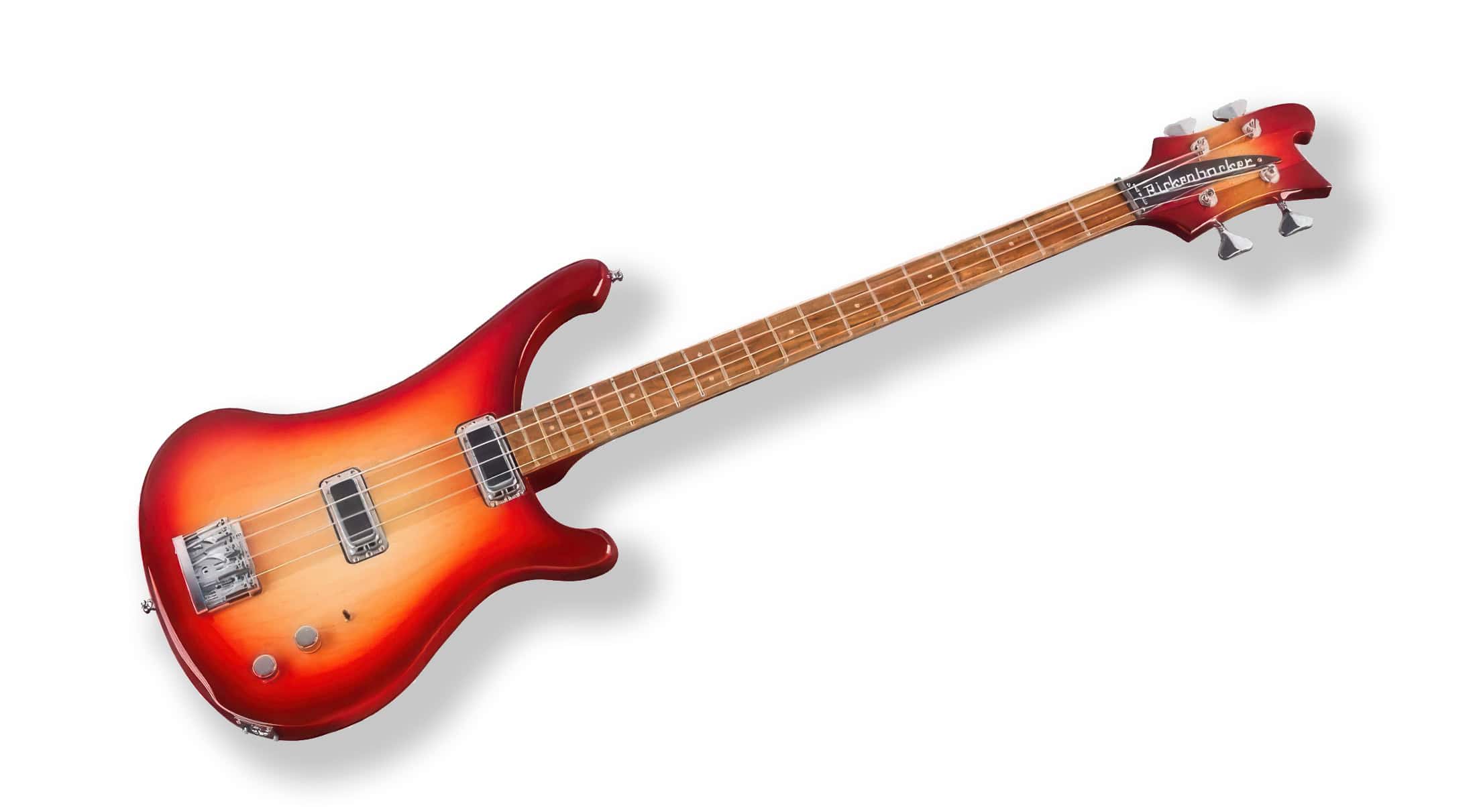

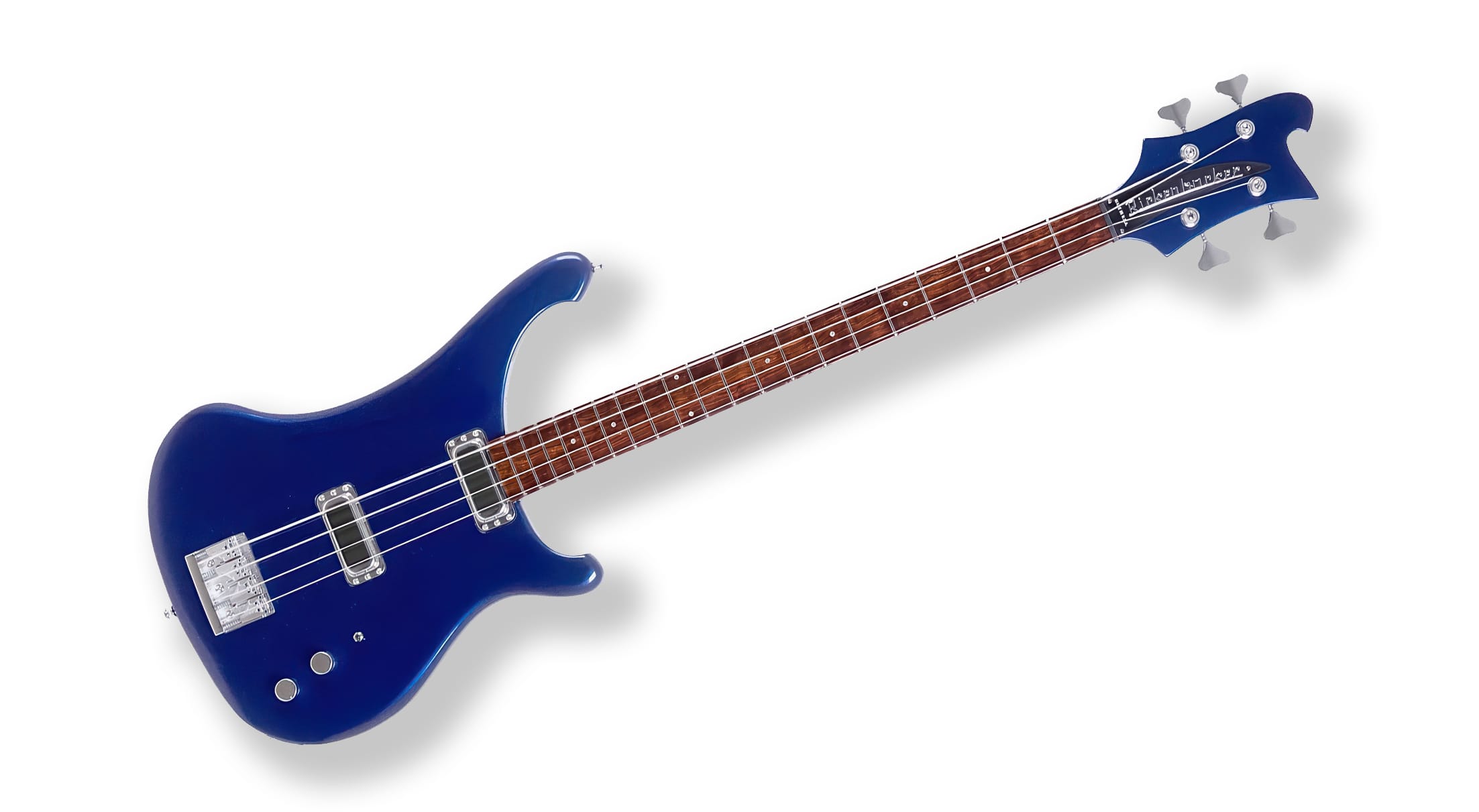

Model 4004L Laredo

Like the model 4004C Cheyenne ii, this stylishly sleek bass incorporates a new low loss circuit which, coupled with Rickenbacker’s latest high output humbucking pickups, delivers a distinctively loud and clear sound. The sculpted body shape and extra body contouring of the 4004L is highlighted by a rich finish (all standard colors available) with contrasting all-chrome plated parts.

Schematic diagram Parts diagram

Specifications

Body Type	Solid
No. Frets	20
Scale Length	84.5cm (33 1/4″)
Neck Width at Nut	42.9 mm (1 11/16”)
Neck Width at 12th Fret	54.0 mm (2 1/8”)
Crown Radius	25.4 cm (10”)
Body Wood	Hardwood
Neck Wood	Maple
Fingerboard Wood	Rosewood
Weight	3.6 kg (8.0 lbs.)
Overall Length	113.8 cm (44 13/16”)

Overall Width	34.3 cm (13 1/2”)
Overall Depth	31.8 mm (1 1/4”)
Neck Binding	No
Fret Marker Style	Dot
Tailpiece	Combi
Bridge	Combi
Neck Type	Thru body
No. of Pickups	2
Type of Pickups	Humbucking
Output Type	Mono
Machine Heads	Schaller M4
