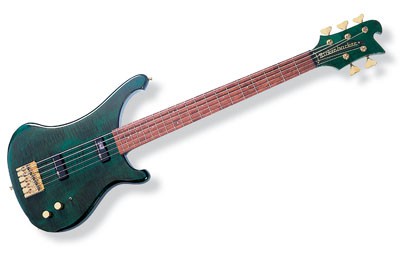

Model 4004Cii/5 Cheyenne

Using only American farm-grown sustainable woods, this exquisite 5- string bass is sculpted from solid Maple and Walnut, complemented by an Eastern Maple neck running the full length of the bass. Two humbucking pickups are carefully placed for maximum tonal capability. Available in all standard colors, plus natural, translucent Green, Red, and Blue, all with a rich gloss clear coat.

Schematic diagram Parts diagram

Specifications

Body TypeSolid
No. Frets20
Scale Length84.5cm (33 1/4″)
Neck Width at Nut50.8 mm (2”)
Neck Width at 12th Fret68.3 mm (2 11/16”)
Crown Radius25.4 cm (10”)
Body WoodCharactered Maple
Neck WoodMaple
Fingerboard WoodRosewood
Weight3.9 kg (8.6 lbs.)
Overall Length113.8 cm (44 13/16”)
Overall Width34.3 cm (13 1/2”)
Overall Depth31.8 mm (1 1/4”)
Neck BindingNo
Fret Marker StyleDot
TailpieceCombi
BridgeCombi
Neck TypeThru body
No. of Pickups2
Type of PickupsHumbucking
Output TypeMono
Machine HeadsSchaller M4
