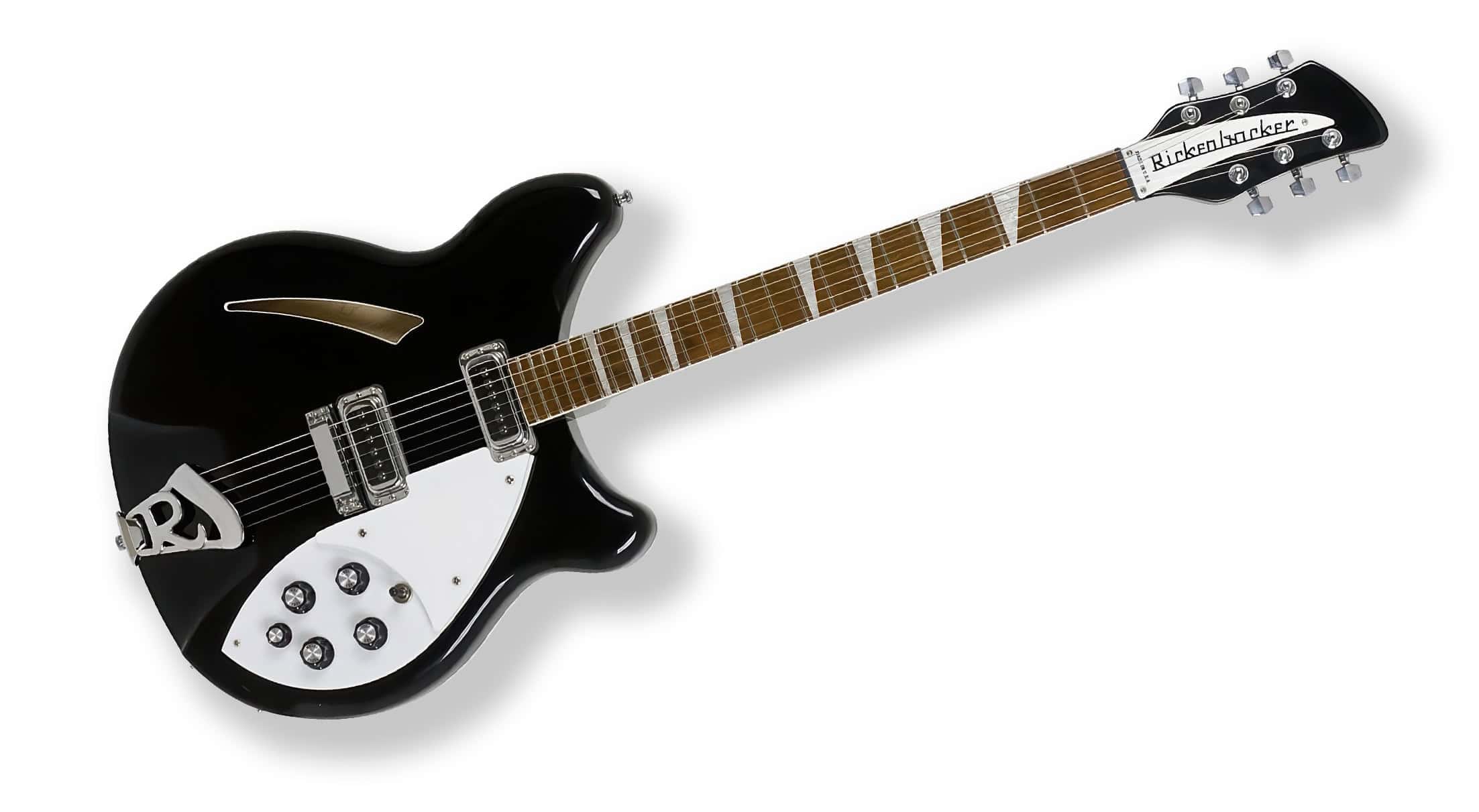

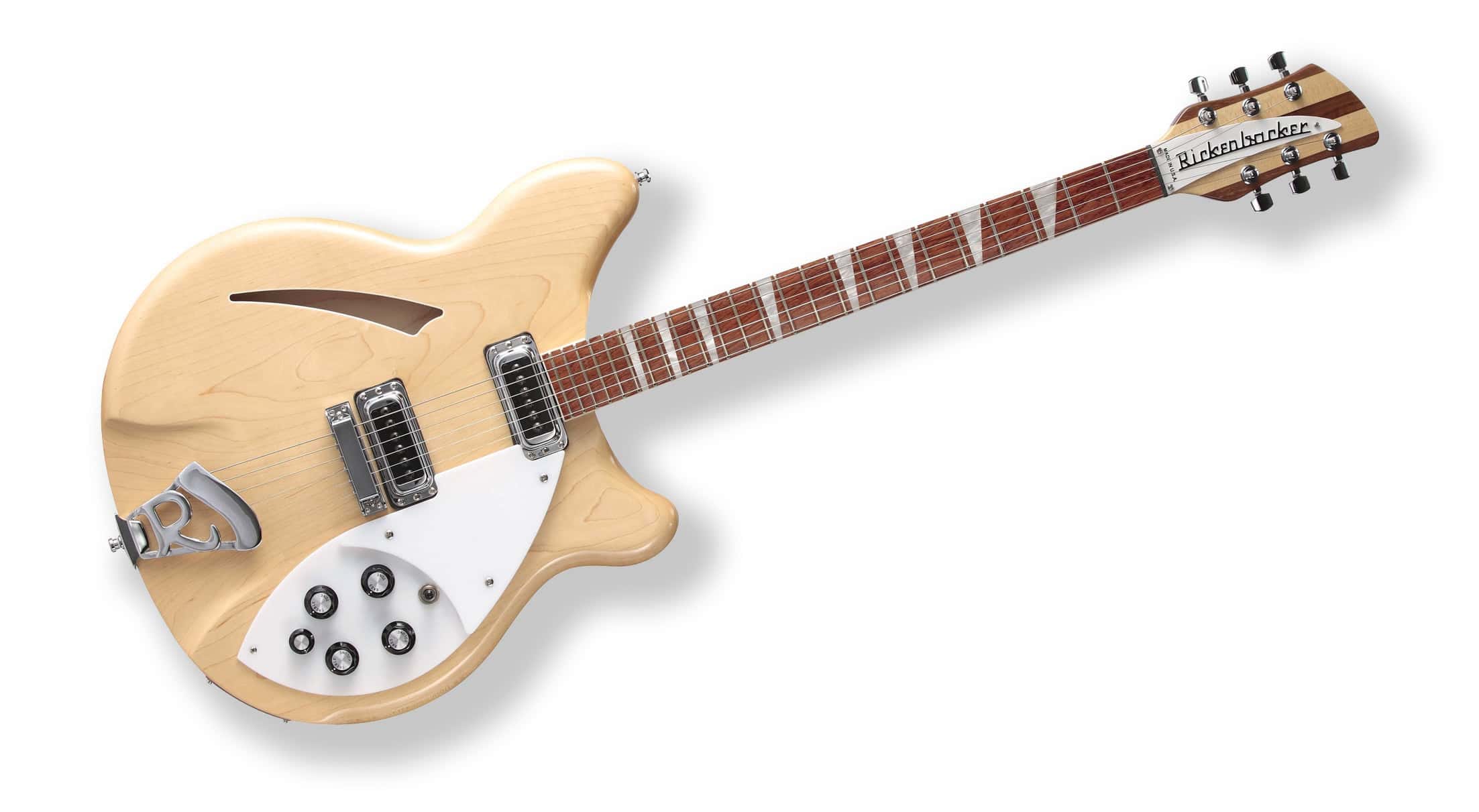

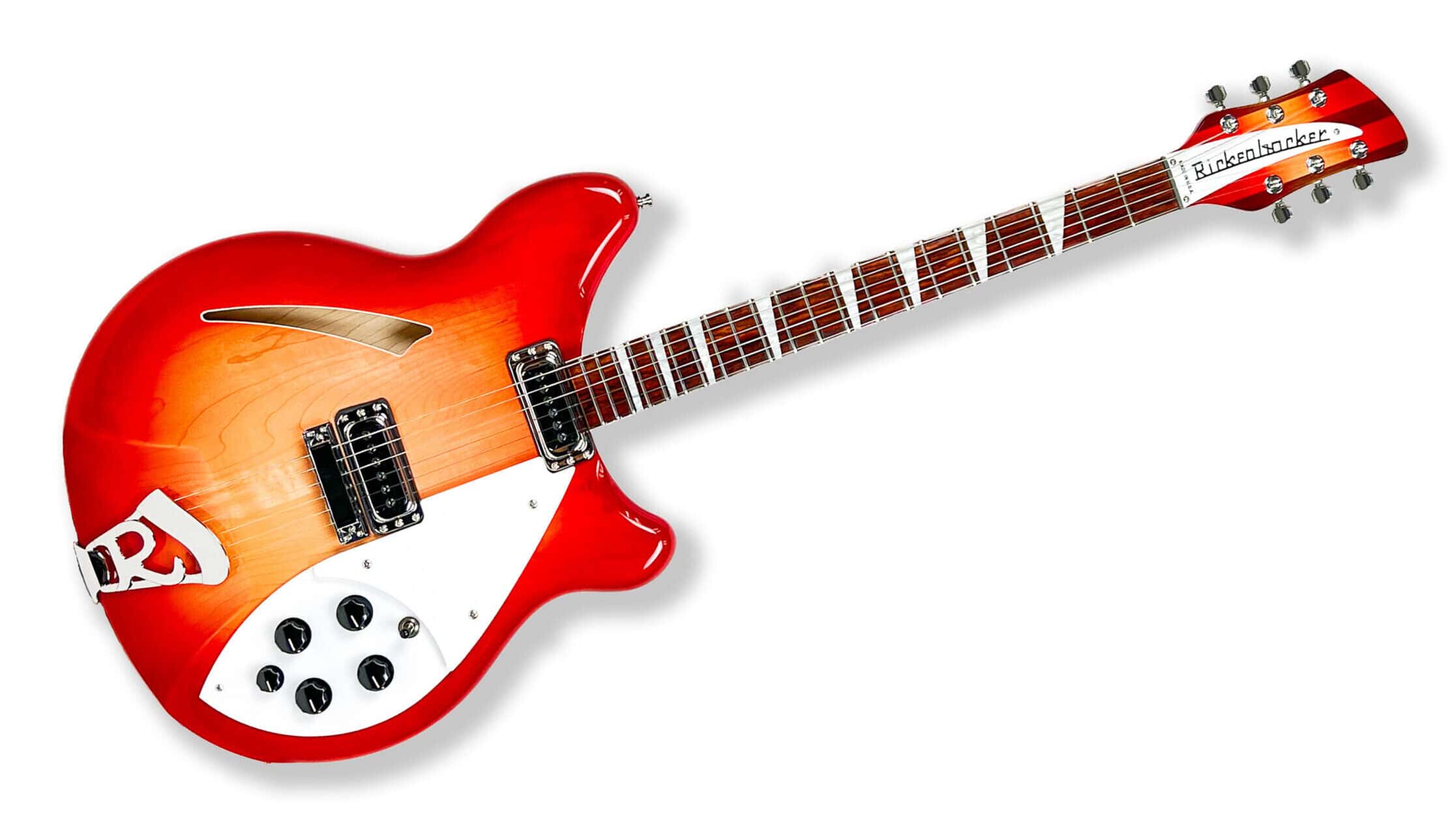

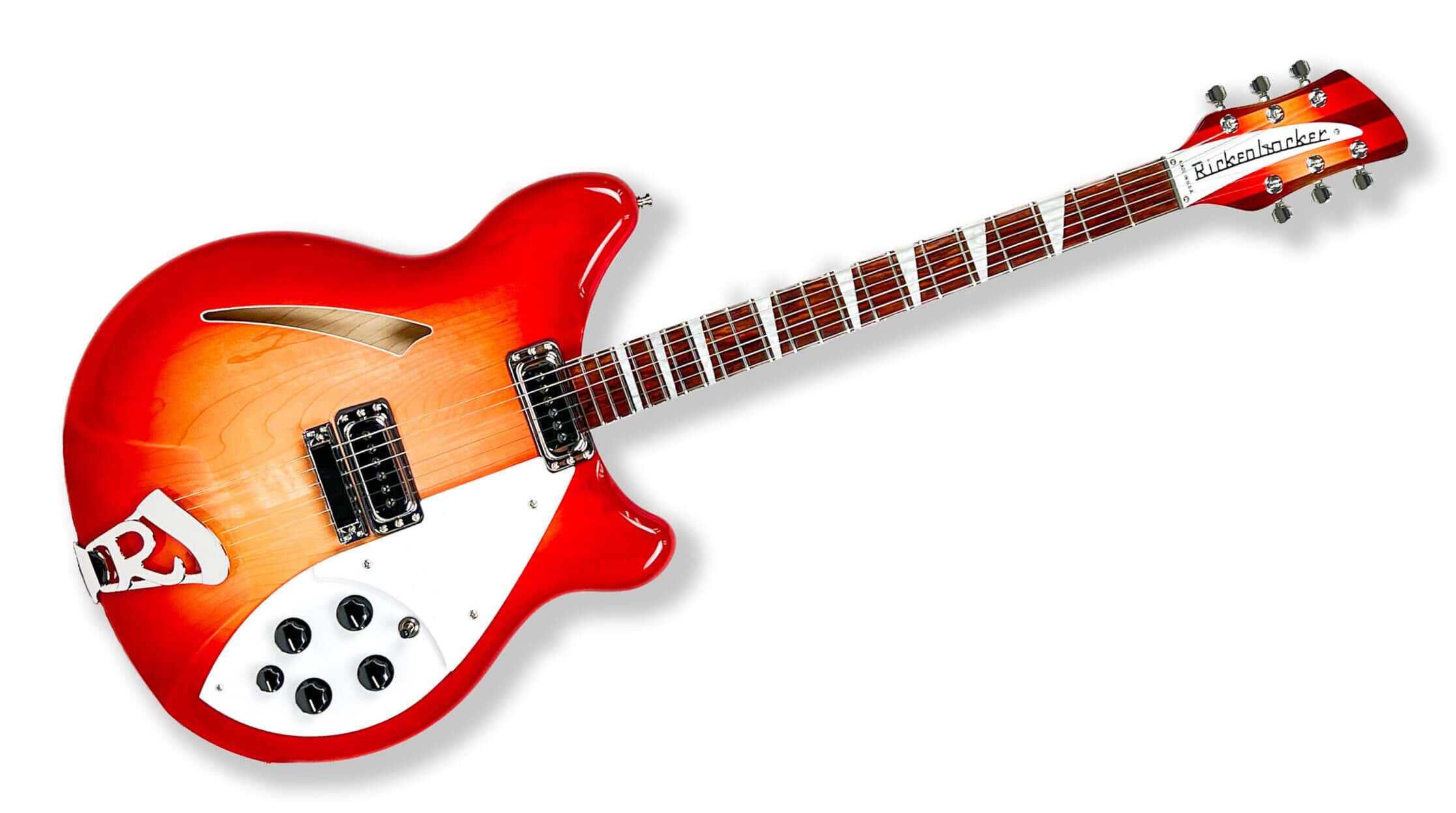

Model 360

This guitar broke all the rules of traditional styling when it appeared amid the ‘British’ sound of the 1960’s. Subtly updated through the years, this Deluxe hollow body with its special contour around the entire body perimeter, is still perhaps the most comfortable guitar of all. The bound body and Rosewood fingerboard, inlayed with triangular pearloid markers, provide an exceptionally attractive appearance. Stereo output is standard.

Schematic diagram Parts diagram

Specifications

Body Type	Semi-Acoustic
No. Frets	21
Scale Length	62.9 cm (24 3/4”)
Neck Width at Nut	41.4 mm (1.63”)
Neck Width at 12th Fret	49.05 mm (1 .931”)
Crown Radius	25.4 cm (10”)
Body Wood	Maple
Neck Wood	Maple & Walnut
Fingerboard Wood	Rosewood
Weight	3.6 kg (8.0 lbs.)
Overall Length	101 cm (39 3/4”)

Overall Width	38.1 cm (15”)
Overall Depth	38.1 mm (1 1/2”)
Neck Binding	Yes
Fret Marker Style	Triangle
Tailpiece	‘R’
Bridge	6 Saddle
Neck Type	Set-in
No. of Pickups	2
Type of Pickups	Hi-gain
Output Type	Mono and Stereo
Machine Heads	Gotoh
